拉线盘注射工艺分析及模具设计

来源：wenku7.com 资料编号：WK74540 资料等级：★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9AWK74540

以下是资料介绍,如需要完整的请充值下载。
1.无需注册登录,支付后按照提示操作即可获取该资料.
2.资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用. 密保惠帮助

资料介绍

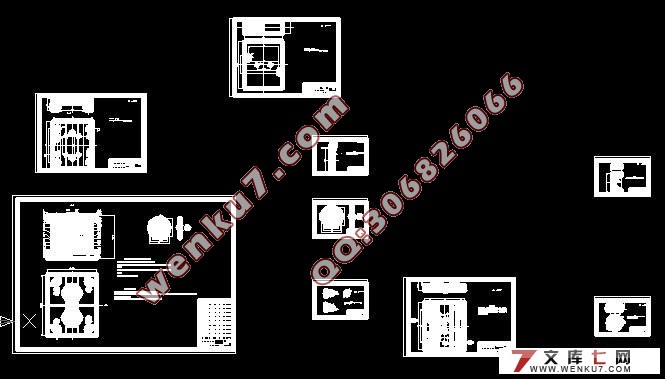

拉线盘注射工艺分析及模具设计(设计说明书10500字,cad图纸9张)
摘要：注射成型是热塑性塑料成型的主要方法之一，可以一次成型形状复杂的精密塑件。本设计进行了一款拉线盘的注塑模设计，对零件结构进行了工艺分析。确定了分型面、浇注系统等，选择了注射机，计算了成型零部件的尺寸。采用侧浇口。利用直导柱导向，推杆顶料,斜顶杆完成脱模及内抽芯方式并对模具的材料进行了选择。如此设计出的结构可确保模具工作运用可靠。最后对模具结构与注射机的匹配进行了校核。并用autoCAD绘制了一套模具装配图和零件图。

关键词：注射工艺；注射模具；工艺分析；

Design of Cable Set Mold and It's Process Analysis of Injection
Abstract: Injection molding is one of the main molding methods for thermo plastics, and it can once-formed delicate plastic members with sophisticated shape. This paper discussed the design of plastic injection mould of the upper cover of the cable set mold., and the process analysis of the parts' structures.The author determined the parting surfaces and the gating system etc, choosed the injection molding machine，calculated the sizes of the molding parts. Side gate and hydraulic inner action was used, straight pillar and puncher was used for guiding and conveying the materials. The author also choosed the materials of the mould. The structure designed in such way can ensure the reliable running of the mould. Finally, the author checked the match between the mould structure and the injection molding machine. And the author also drew a set of mold assembling chart and parts chart using autoCAD software.
Key words: Process of injection;injection mold;Analysis of process;

目录
摘要…………………………………………………………………………………………1
关键词………………………………………………………………………………………1
1 前言………………………………………………………………………………………2
      1.1 研究意义…………………………………………………………………………2
      1.2 国内外研究现状…………………………………………………………………2
      1.3 发展方向…………………………………………………………………………3
2   塑料的工艺性分析……………………………………………………………………3
      2.1 塑件的原材料分析………………………………………………………………3
      2.2 制件分析…………………………………………………………………………3
          2.2.1 塑件的结构分析…………………………………………………………3
          2.2.2 塑件尺寸精度的分析……………………………………………………3
         2.2.3 表面质量分析……………………………………………………………4
      2.3 塑件的体积重量…………………………………………………………………4
      2.4 塑件的注射工艺参数的定………………………………………………………5
3 型腔数的确定及浇注系统的设计………………………………………………………6
      3.1 分型面的选择……………………………………………………………………6
      3.2 型腔数的确定……………………………………………………………………7
      3.3 型腔排列方式的确定……………………………………………………………7
      3.4 设计浇注系统……………………………………………………………………7
          3.4.1 设计主流道………………………………………………………………7
          3.4.2 设计浇口道………………………………………………………………8
          3.4.3 设计浇口…………………………………………………………………8
4 设计侧抽芯机构…………………………………………………………………………9
      4.1 确定斜导柱倾斜角……………………………………………………………10
      4.2 计算斜导柱的长度……………………………………………………………10
