电梯监控系统现场监控平台设计(毕业论文10800字)
摘 要
电梯监控是智能建筑中楼宇自控管理系统的组成部分，因此电梯监控技术的进步也是楼宇自控管理系统水平提高的一项基础工作。电梯监控技术不论从远期目标还是近期目标来说都是要从系统的设计和单体应用水平两个方面来加以考虑。电梯监控系统的目的是用来获取电梯实时的状态信息，进而为完成故障报警、困人救援、日常管理、质量评估、隐患防范等的安全工作提供数据依据，本文主要是进行电梯监控系统现场监控平台设计。
本文以实现电梯监控系统现场监控平台设计发展情况和现状为课题背景，主要完成课题中电梯的现场监控平台设计。为了对于采集到的数据进行实时采集、自动存储、即时显示、即时反馈、自动处理、自动传输。该设计的主要任务是采用LabVIEW进行软件平台的设计。首先，介绍了整个现场监控平台的总体结构设计。其次，介绍了对应每一部分的流程图和程序框图以及它们的功能。另外，为了进一步的验证该设计现场监控平台的可行性，还对电梯模型和手动控制模拟测试软件进行了初步设计实现。通过电梯模拟测试软件和现场监控平台程序的调试，进一步验证了该设计的实用性。
关键字：电梯现场监控LabVIEW 串口通讯技术
Design of Elevator Control System on-site Monitoring Platform
abstract
The elevator control is an integral part of the building automation management systems in the intelligent building, therefore the progress of the elevator control technology is also a building automation management system, improving the level of the basic work. Elevator monitoring technology, whether from long-term goals or short-term goal from the two aspects of system design and monomer level of application to be considered. The purpose of the elevator control system is used to obtain real-time status information in the elevator, and then to complete failure alarm, entrapment rescue, day-to-day management, quality assessment, and hidden to prevent security provides the data basis of this paper is the elevator control system on-site monitoring platform design.
.Elevator monitoring system on-site monitoring platform design development and status of the subject background, the main topics in the elevator on-site monitoring platform design. In order to real-time acquisition and automatic storage, real-time display and immediate feedback, automatic processing, automatic transmission for the collected data. The main task of the design is the use of LabVIEW software platform design. First, the overall structural design of the entire on-site monitoring platform. Secondly, corresponding to each part of the flow chart and block diagram, as well as their function. In addition, in order to further verify the feasibility of the design of on-site monitoring platform elevator model and the manual control simulation test software preliminary design to achieve. Elevator simulation tests and field monitoring platform for program debugging, and further verify the practicality of the design.
Keywords: Elevator on-site monitoring ;LabVIEW;Serial Port Communication Technology
目 录
摘 要 I
abstract II
第一章 绪 论 1
1.1概述 1
1.2电梯现场监控系统的发展现状 2
1.3 485通讯技术介绍 4
1.4 本文的主要工作 5
第二章 系统总体设计 6
2.1系统总体设计方案和总体结构示意图 6

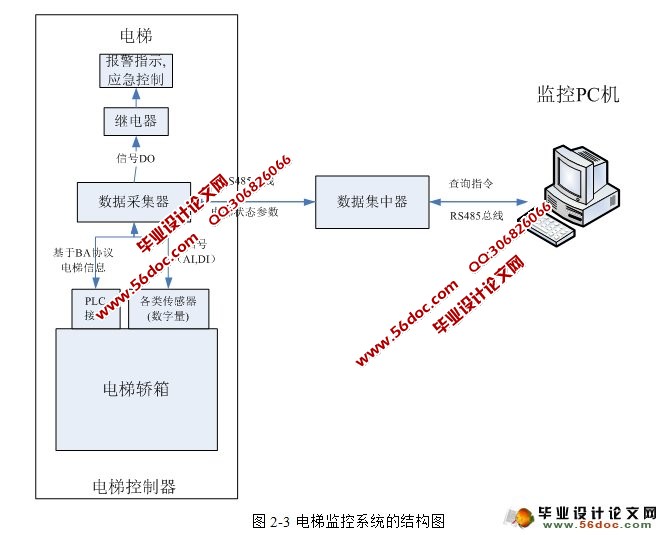

2.2电梯现场监控的结构图 7
2.3 LabVIEW编程环境的简介 8
第三章 现场监控平台的设计 10
3.1现场监控平台的总体结构 10
3.2基本的串行读取的写入的程序流程图及框图介绍 12
3.3基本的串口配置对话框及其框图说明 13
3.4现场监控平台的调试结果 15
第四章 电梯测试控制软件的设计 16
4.1手动控制电梯测试模块的设计 16
4.2电梯模型的设计 17
4.3电梯模型中各子程序设计 18
4.4电梯测试控制软件的调试 20
结语 21
参考文献 22
致谢 23
附录1：模拟电梯运行主程序层次结构图 24
附录2：电梯监控界面层次结构图 25
|
