基于单片机的水位告警系统的设计与实现(课题说明书,开题报告,中期检查表,论文10000字)
摘 要 随着科学技术的提高，人们对生活质量的要求也越来越高，因此自动控制系统应运而生。单片机作为具有数据处理能力的集成电路芯片，已经被使用在很多电子元件中，在现代社会中发挥出了重要作用。在本研究中，选择了AT89C51单片机作为主控芯片，以水的导电性特点制作的水位检测电路，来对水位进行检测及告警，形成一种低水位告警抽水、高水位告警停止的装置；也可手动进行液位的控制。这种装置具有功耗低,电路简单安全可靠,抗干扰性强,电路的体积小,操作方便等优点,能够满足不同人的生活需要，具有广阔的发展前景。
关键词 自动抽水； 水位告警； AT89C51单片机
Design and Implementation of Water Level Warning System Based on Single Chip Microcomputer
Abstract With the improvement of science and technology, people's demand for quality of life is getting higher and higher, so automatic control system comes into being. As an integrated circuit chip with data processing capability, SCM has been widely used in production and life. This experimental device is based on the AT89C51 microcontroller, and the water level sensor is made based on the electrical conductivity of water to detect and warn the water level, forming a device for warning the pumping of water at low water levels and warning the stop of high water levels. It is also possible to manually control the liquid level. This kind of device has the advantages of low power consumption, simple and reliable circuit, strong interference resistance, small size of circuit, and convenient operation. It can meet the needs of different people and has broad development prospects.
Keywords Automatic; Water level alarm; AT89C51 Single chip
目 录
摘要及关键词 1
1引言 1
1.1课题选题背景 1
1.2国内外研究状况 1
1.3研究水位告警系统的意义 2
2 设计要求和原理 2
2.1基本功能 2
2.2水位控制原理 2
2.3 装置总体设计方案 3
3 系统方案设计 4
3.1系统硬件方案 4
3.2 主控电路设计 6
3.3 告警电路设计 9
3.4 水位测量电路设计 9

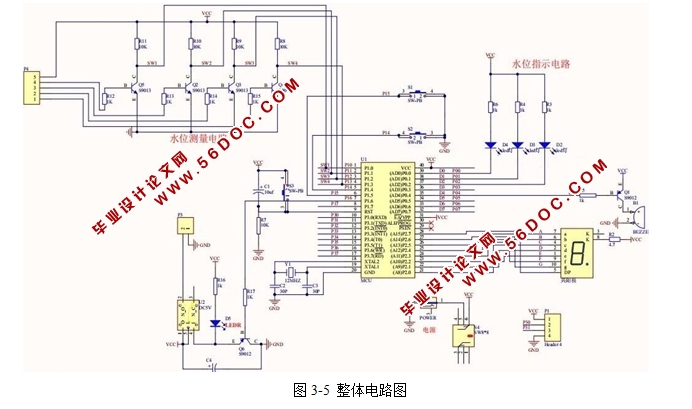

3.5 整体电路图 11
3.6系统软件方案 11
4 水位检测技术汇总 15

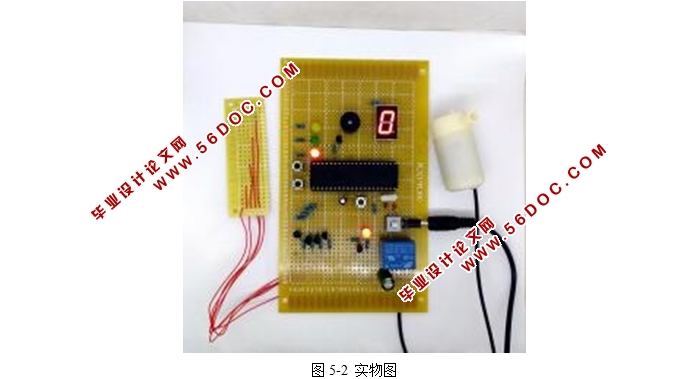

5调试与实现 16
6结论 17
参考文献 17
致谢 20
|
